Wired keypad designed for automatic gate system, build outside , just input passward or swipe card to open gate instead of remote control.
Item No.:
JJ-TKM-09Payment:
TT/PaypalProduct origin:
ChinaShipping port:
Shenzhen/XiamenLead Time:

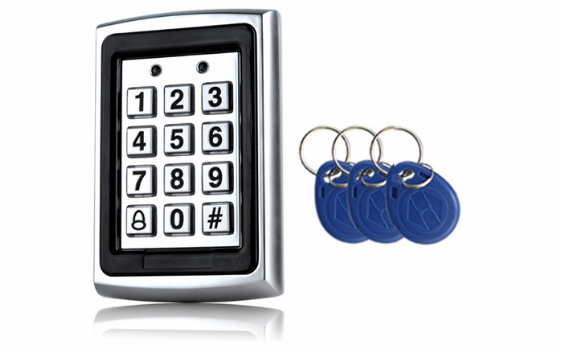

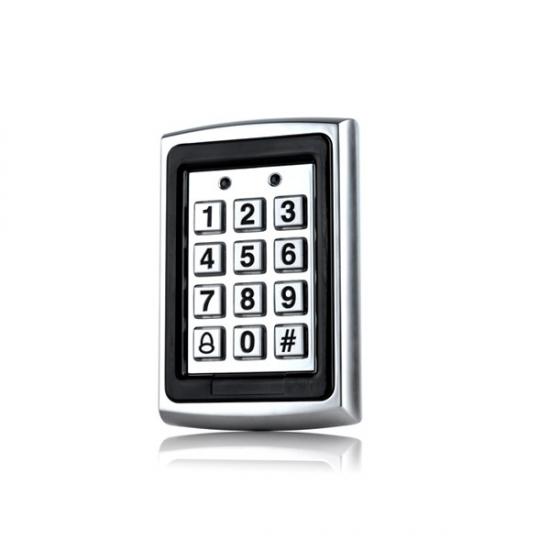

10-25days12-24V Gate Opener Wired Access Control Keypad
Wired keypad designed for automatic gate system, build outside , just input passward or swipe card to open gate instead remote control.
Product main technical indicators
|
Project |
Indicators |
|
Power Supply |
12VDC+12%/1.2A |
|
unlock relay |
12VDC/2A |
|
ambient temperature: |
work: 0℃~45℃ storage :-10℃~55℃ |
|
Relative humidity |
work:40%~90%RH storage:20%~90%RH |
|
effective Cards |
1000 |
|
Password |
common ：1 individual ：7000 |
|
Built-in proximity card reader identify the frequency |
IDtype:125KHz
|
|
induction card identifying the type |
IDtype:EM or compatible |
|
card reader from |
IDtype:5-15CM
|
|
Electric locking interface |
relay output or output of optional |
|
add-in Reader Interface |
1 Weigand26 interface (some models there is no such interface) |
Standard kit includes:
1*keypad
3 *ID cards
